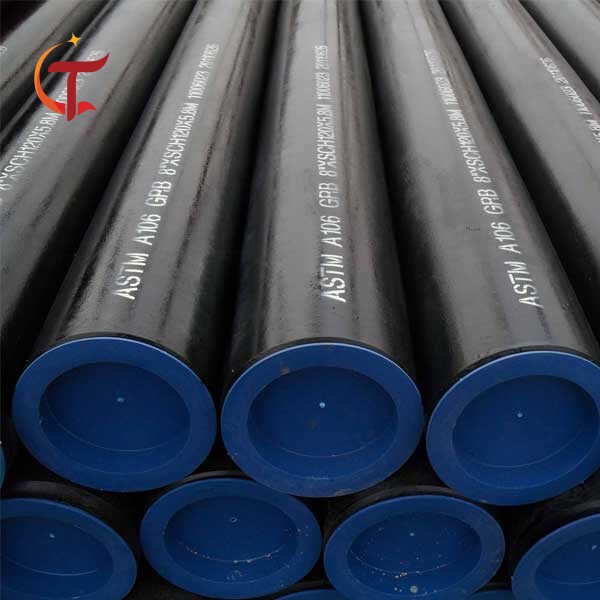

Seamless Line Pipe

Line pipe is a tube made of high strength carbon steel. It is typically manufactured according to the API 5L metallurgical specification developed by the American Petroleum Institute (API). The raw material can be either seamless or welded carbon steel or stainless steel piping. This product can be used to build pipelines that transport a variety of resources including natural gas, oil, petroleum, and water. API 5L line pipe is available in various diameters ranging from two inches to 48 inches. Its size and diameter required for a pipeline vary according to the amount of gas or liquid that it intended to carry and the pressures it must withstand.

+86 16600268439

+86 16600268439

+86 16600268439

bg02@cn-tiangang.com

Product Description

Product:Line Pipe, API Line Pipe, Seamless Line Pipe, Carbon Steel Line Pipe

Specification:

Outer Diameter(OD): 73-630mm

Wall Thickness(WT): 6-35mm

LENGTH: 5.8/6/11.8/12m

Pipe Standard:

API 5L PSL1/PSL2 Gr.A,Gr.B,X42,X46,X52,X56,X60,X65,X70

API 5L PSL1/PSL2 L210,L245,L290,L320,L360,L390,L415,L450,L485

End: Square Ends/Plain Ends (straight cut, saw cut, torch cut),Beveled/Threaded Ends

LINE PIPE COATINGS

- Fusion Bonded Epoxy (FBE) Coating

- Three Layers Polyethylene (3PE) Coating

- Three Layers Polypropylene (3PP) Coating

- Epoxy Coal Pitch Anticorrosion Coating

- Silicone Anticorrosion Coating

- Internal Coating

Surface:Black Painting/Oil Painting/Anti-Rust oil/Anti-Corrosive Coating

Packing: Bundled,Plastic Caps Plugged,Waterproof Paper/Bag Wrapped

Application:For Transportation in petroleum and natural gas industries

Seamless Line Pipe

Steel Grade: B, X42, X52, X60, X65, X70

Dimension: 1"/2" - 24"

Process:hot rolling, hot expanding

Welding Line Pipe

Steel Grade: B, X42, X52, X60, X65, X70, X80

Dimension: 2" - 30"

Process: ERW, SSAW, LSAW, HFW, JCOE.

Standard: API 5L / ISO 3183 Hot Rolled

Type: Seamless / ERW / Welded / Fabricated / CDW

Outer Diameter Size: 3/8" NB To 30" NB (Nominal Bore Size)

Wall Thickness: Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness

Length: 5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size.

Pipe Ends: Plain Ends / Beveled Ends / Coupling

Surface Coating: Epoxy Coating / Colour Paint Coating / 3LPE Coating.

Grades: API 5l Grade B X42, API 5l Grade B X46, API 5l Grade B X52, API 5l Grade B X56, API 5l Grade B X60, API 5l Grade B X65, API 5l Grade B X70

Line pipes can be categorized in different types. The following pipelines are classified according to the type of fluids and items transported.

DIMENSIONS AND SIZES OF LINE PIPE
NPS		O. D.	Nominal Wall Thickness
DN	Inch	mm	SCH	SCH	SCH	SCH	SCH	SCH	SCH	SCH	SCH	SCH	SCH	SCH	STD	XS	XXS
DN	Inch	mm	5S	10S	10	20	30	40	60	80	100	120	140	160	STD	XS	XXS
50	2″	60.3	1.65	2.77	–	–	–	3.91	–	5.54	–	–	–	8.74	3.91	5.54	11.07
65	2-1/2″	73	2.11	3.05	–	–	–	5.16	–	7.01	–	–	–	9.53	5.16	7.01	14.02
80	3″	88.9	2.11	3.05	–	–	–	5.49	–	7.62	–	–	–	11.13	5.49	7.52	15.24
90	3-1/2″	101.6	2.11	3.05	–	–	–	5.74	–	8.08	–	–	–	–	5.74	8.08	–
100	4″	114.3	2.11	3.05	–	–	–	6.02	–	8.58	–	11.13	–	13.49	6.02	8.56	17.12
125	5″	141.3	2.77	3.4	–	–	–	6.55	–	9.53	–	12.7	–	15.88	6.55	9.53	18.05
150	6″	168.3	2.77	3.4	–	–	–	7.11	–	10.97	–	14.27	–	18.26	7.11	10.97	21.95
200	8″	219.1	2.77	3.76	–	6.35	7.04	8.18	10.31	12.7	15.09	18.26	20.62	23.01	8.18	12.7	22.23
250	10″	273.1	3.4	4.19	–	6.35	7.8	9.27	12.7	15.09	18.26	21.44	25.4	28.58	9.27	12.7	25.4
300	12″	323.9	3.96	4.57	–	6.35	8.38	10.31	14.27	17.48	21.44	25.4	28.58	33.32	9.53	12.7	25.4
350	14″	355.5	3.96	4.78	6.35	7.92	9.53	11.13	15.09	19.05	23.83	27.79	31.75	35.71	9.53	12.7	–
400	16″	406.4	4.19	4.78	6.35	7.92	9.53	12.7	16.66	21.44	26.19	30.96	36.53	40.49	9.53	12.7	–
450	18″	457.2	4.19	4.78	6.35	7.92	11.13	14.27	19.05	23.83	39.36	34.93	39.67	45.24	–	–	–
500	20″	508	4.78	5.54	6.35	9.53	12.7	15.09	20.62	26.19	32.54	38.1	44.45	50.01	–	–	–
550	22″	558.8	4.78	5.54	6.35	9.53	12.7	–	22.23	28.58	34.93	41.28	47.63	53.98	–	–	–
600	24″	609.6	5.54	6.35	6.35	9.53	14.27	17.48	24.61	30.96	38.89	46.02	52.37	59.54	–	–	–

If the sizes you are looking for are not in the chart above, please feel free to let us know. We will make efforts to meet your needs.

CHEMICAL COMPOSITION OF LINE PIPE

API 5L PSL-1 Chemical Component

Steel Grade	Mass fraction, based on melting and product analysis %
	C	Mn	P		S	V	Nb	Ti
	max.	max.	min.	max.	max.	max.	max.	max.
L175 or A25	0.21	0.6	–	0.03	0.03	–	–	–
L175P or A25P	0.21	0.6	0.045	0.08	0.03	–	–	–
L210 or GR. A	0.22	0.9	–	0.03	0.03	–	–	–
L245 or GR. B	0.26	1.2	–	0.03	0.03	–	–	–
L290 or X42	0.26	1.3	–	0.03	0.03	–	–	–
L320 or X46	0.26	1.4	–	0.03	0.03	–	–	–
L360 or X52	0.26	1.4	–	0.03	0.03	–	–	–
L390 or X56	0.26	1.4	–	0.03	0.03	–	–	–
L415 or X60	0.26	1.4	–	0.03	0.03	–	–	–
L450 or X65	0.26	1.45	–	0.03	0.03	–	–	–
L485 or X70	0.26	1.65	–	0.03	0.03	–	–	–
- API 5L PSL-2 Chemical Component
Steel Grade	Mass fraction, based on melting and product analysis %
Steel Grade	C	Si	Mn	P	S	V	Nb	Ti	Other
L245M or BM	0.22	0.45	1.2	0.025	0.015	0.05	0.05	0.04	–
L290M or X42M	0.22	0.45	1.3	0.025	0.015	0.05	0.05	0.04	–
L320M or X46M	0.22	0.45	1.3	0.025	0.015	0.05	0.05	0.04	–
L360M or X52M	0.22	0.45	1.4	0.025	0.015	–	–	–	–
L390M or X56M	0.22	0.45	1.4	0.025	0.015	–	–	–	–
L415M or X60M	0.12	0.45	1.6	0.025	0.015	–	–	–	–
L450M or X65M	0.12	0.45	1.6	0.025	0.015	–	–	–	–
L485M or X70M	0.12	0.45	1.7	0.025	0.015	–	–	–	–
L555M or X80M	0.12	0.45	1.85	0.025	0.015	–	–	–	–
L625M or X90M	0.1	0.55	2.1	0.02	0.01	–	–	–	–
L690M or X100M	0.1	0.55	2.1	0.02	0.01	–	–	–	–
L830M or X120M	0.1	0.55	2.1	0.02	0.01	–	–	–	–

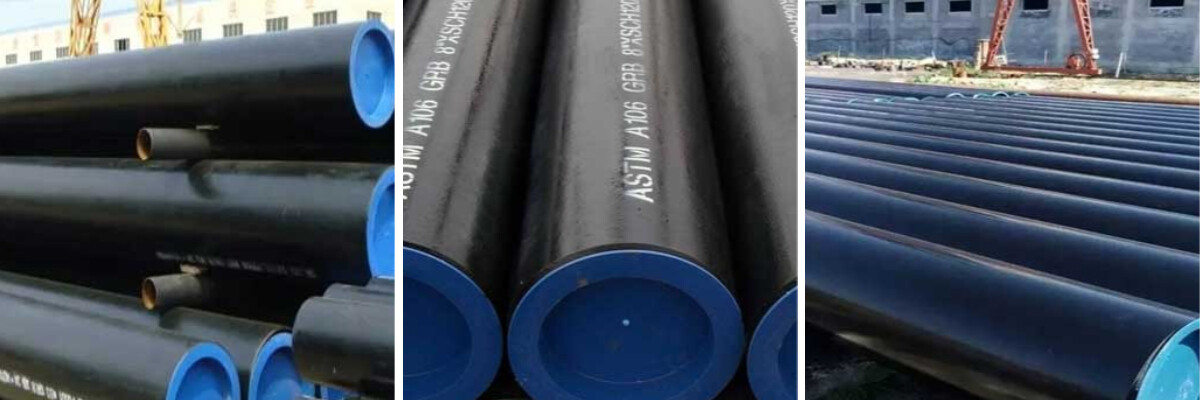

Product Show

Application

Packaging And Transportation

Factory Display

Certificate Display

FAQ

Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of pipeline products located in Tianjin，China. Welcome to contact us and visit our factory before you place orders.
Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.
Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
Q: What is the MOQ?
A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.
Q: Can you OEM or ODM?
A: Yes, we have a strong developing team. The products can be made according to your request
